ANSI b16.9 36 inch nhazi oge 40 Butt Weld carbon steel anwụrụ ọgwụgwụ okpu Black Steel Pipe Cap

ANSI b16.9 36 inch nhazi oge 40 Butt Weld carbon ígwè ọkpọkọ ọgwụgwụ okpu Black Steel Pipe Cap Epụtara Image
  • ANSI b16.9 36 inch nhazi oge 40 Butt Weld carbon steel anwụrụ ọgwụgwụ okpu Black Steel Pipe Cap
  • ANSI b16.9 36 inch nhazi oge 40 Butt Weld carbon steel anwụrụ ọgwụgwụ okpu Black Steel Pipe Cap
  • ANSI b16.9 36 inch nhazi oge 40 Butt Weld carbon steel anwụrụ ọgwụgwụ okpu Black Steel Pipe Cap

Nkọwa dị mkpirikpi:

Aha: Pipe Cap
Nha: 1/2"-110"
Standard: ANSI B16.9, EN10253-2, DIN2617, GOST17379, JIS B2313, MSS SP 75, wdg.
Ọgwụgwụ: njedebe Bevel/BE/buttweld
ihe: Carbon ígwè, Pipeline ígwè, Cr-Mo alloy
Wall ọkpụrụkpụ: STD, XS, XXS, SCH20, SCH30, SCH40, SCH60, SCH80, SCH160, XXS na wdg.


  • Ọgwụgwọ elu:Ihe osise ojii, mmanụ mgbochi nchara, mgbawa ájá
  • Nkwụsị:bevel njedebe ANSI B16.25
  • OEM:Dị
  • MOQ:1 Iberibe
    • Budata dị ka PDF

    Nkọwa ngwaahịa

    PRAMETERS ngwaahịa

    Aha ngwaahịa Okpu ọkpọkọ
    Nha 1/2"-60" enweghị nkebi, 62"-110" welded
    Ọkọlọtọ ANSI B16.9, EN10253-2, DIN2617, GOST17379, JIS B2313, MSS SP 75, wdg.
    Ọkpụrụkpụ mgbidi STD, XS, XXS, SCH20, SCH30, SCH40, SCH60, SCH80, SCH160, XXS na ndị ọzọ.
    Ọgwụgwụ Bevel ọgwụgwụ/BE/buttweld
    Elu agba okike, varnished, eserese ojii, mmanụ mgbochi nchara wdg.
    Ihe onwunwe Carbon ígwè:A234WPB, A420 WPL6 St37, St45, E24, A42CP, 16Mn, Q345, P245GH, P235GH, P265GH, P280GH, P295GH, P355GH wdg.
    ígwè pipeline:ASTM 860 WPHY42, WPHY52, WPHY60, WPHY65, WPHY70, WPHY80 na ndị ọzọ.
    Cr-Mo alloy ígwè:A234 WP11, WP22, WP5, WP9, WP91, 10CrMo9-10, 16Mo3 wdg.
    Ngwa Ụlọ ọrụ Petrochemical, ụlọ ọrụ ụgbọ elu na ikuku, ụlọ ọrụ ọgwụ, ikuku gas;ụlọ ọrụ ike; ụlọ ụgbọ mmiri;ọgwụgwọ mmiri, wdg.
    Uru ngwaahịa dị njikere, oge nnyefe ngwa ngwa; dị na nha niile, ahaziri; ịdị mma dị elu

    Okpukpo ígwè ígwè

    A na-akpọkwa okpu ígwè nchara nchara, ọ na-ejikarị welded na njedebe ọkpọkọ ma ọ bụ tinye ya na eriri mpụga nke njedebe ọkpọkọ iji kpuchie ọkpọkọ ọkpọkọ.Iji mechie pipeline ka ọrụ ahụ dị ka nkwụnye ọkpọkọ.

    ỤDỊ KAP

    Ebe dị iche iche sitere na ụdị njikọ, e nwere: 1.Butt weld cap 2.Socket weld cap

    Ọnụ ego nke BW Steel Cap

    BW ígwè ọkpọkọ okpu bụ butt weld ụdị nke oyiyi akwa, njikọ ụzọ bụ iji butt ịgbado ọkụ.Ya mere okpu BW na-agwụ na beveled ma ọ bụ larịị.

    Akụkụ okpu BW na ịdị arọ:

    Nha ọkpọkọ nkịtị N'èzí

    Dayameta

    na Bevel (mm)

    		 Ogologo

    E(mm)

    		 Mgbidi na-egbochi

    Ọkpụrụkpụ

    maka Ogologo E

    		 Ogologo

    E1(mm)

    		 Ibu(kg)
    SCH10S SCH20 STD SCH40 XS SCH80
    1/2 21.3 25 4.57 25 0.04 0.03 0.03 0.05 0.05
    3/4 26.7 25 3.81 25 0.06 0.06 0.06 0.10 0.10
    1 33.4 38 4.57 38 0.09 0.10 0.10 0.013 0.13
    1 1/4 42.2 38 4.83 38 0.13 0.14 0.14 0.20 0.20
    1 1/2 48.3 38 5.08 38 0.14 0.20 0.20 0.23 0.23
    2 60.3 38 5.59 44 0.20 0.30 0.30 0.30 0.30
    2 1/2 73 38 7.11 51 0.30 0.20 0,50 0,50 0,50
    3 88.9 51 7.62 64 0.45 0.70 0.70 0.90 0.90
    3 1/2 101.6 64 8.13 76 0.60 1.40 1.40 1.70 1.70
    4 114.3 64 8.64 76 0.65 1.6 1.6 2.0 2.0
    5 141.3 76 9.65 89 1.05 2.3 2.3 3.0 3.0
    6 168.3 89 10.92 102 1.4 3.6 3.6 4.0 4.0
    8 219.1 102 12.70 127 2.50 4.50 5.50 5.50 8.40 8.40
    10 273 127 12.70 152 4.90 7 10 10 13.60 16.20
    12 323.8 152 12.70 178 7 9 15 19 22 26.90
    14 355.6 165 12.70 191 8.50 15.50 17 23 27 34.70
    16 406.4 178 12.70 203 14.50 20 23 30 30 43.50
    18 457 203 12.70 229 18 25 29 39 32 72.50
    20 508 229 12.70 254 27.50 36 36 67 49 98.50
    22 559 254 12.70 254 42 42 51 120
    24 610 267 12.70 305 35 52 52 93 60 150

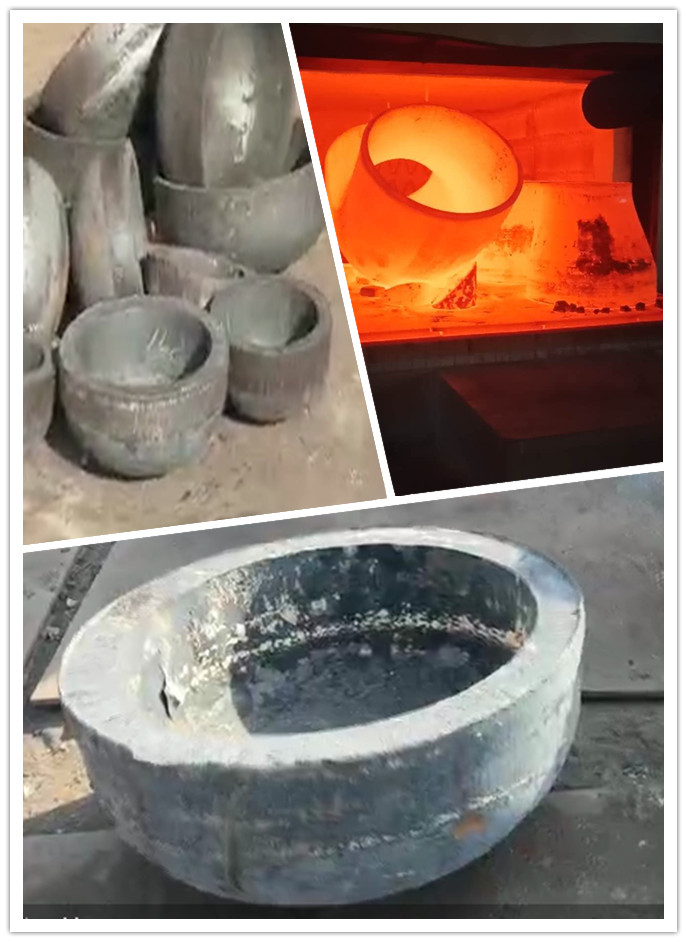

    Ọgwụgwọ okpomọkụ

    1. Debe ihe atụ akụrụngwa iji chọpụta
    2. Hazie ọgwụgwọ okpomọkụ dị ka ọkọlọtọ siri ike

    concentric_

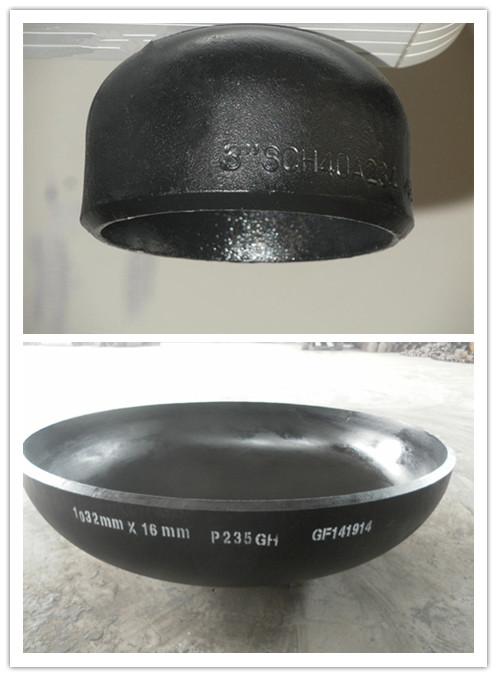

    MARKING

    Ọrụ akara dị iche iche, nwere ike ịgbagọ, eserese, lable.Ma ọ bụ na arịrịọ gị.Anyị na-anabata ịka akara LOGO gị

    concentric_

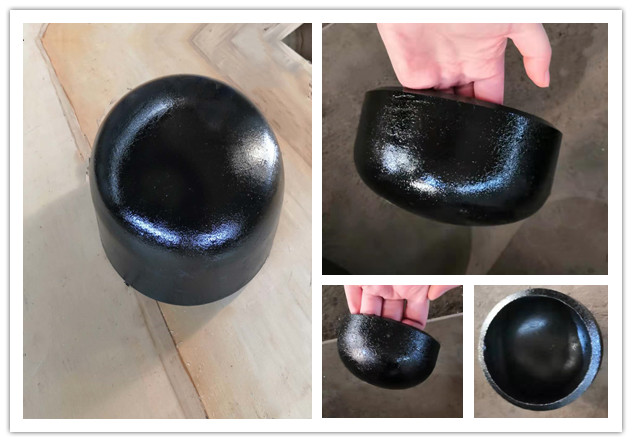

    Foto zuru ezu

    1. Bevel agwụ dị ka ANSI B16.25.

    2. Mgbawa aja mbụ, mgbe ahụ, ọrụ eserese zuru oke.Ọzọkwa nwere ike ịbụ varnish

    3. Na-enweghị lamination na cracks

    4. Enweghị nrụzi weld ọ bụla

    concentric_

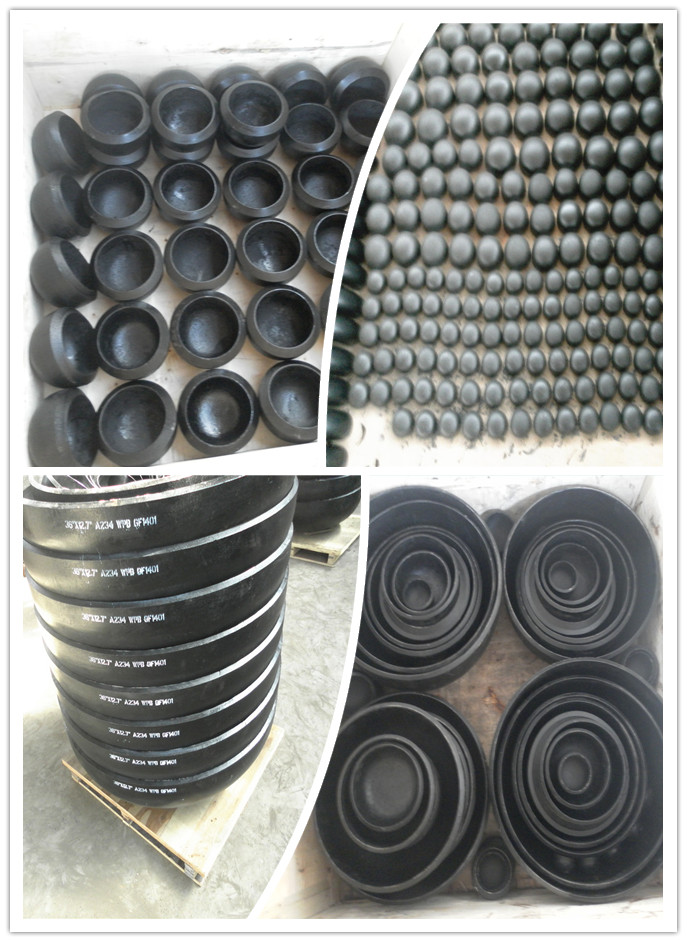

    Nkwakọ ngwaahịa & Mbupu

    1. Kwajuru ya site na plywood case ma ọ bụ plywood pallet dị ka ISPM15
    2. anyị ga-etinye ndepụta nkwakọ ngwaahịa na ngwugwu ọ bụla
    3. anyị ga-etinye akara mbupu na ngwugwu ọ bụla.Okwu akara dị na arịrịọ gị.
    4. All osisi ngwugwu ihe bụ fumigation free

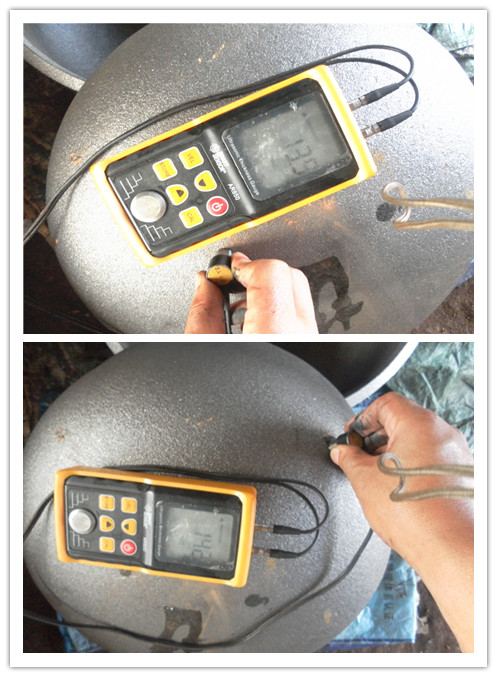

    Nyocha

    1. nha nha, niile n'ime nnabata ọkọlọtọ.
    2. Ọkpụrụkpụ ndidi:+/- 12.5% ​​, ma ọ bụ na arịrịọ gị
    3. PMI
    4. MT, UT, X-ray ule
    5. Nabata nyocha nke ndị ọzọ
    6. Nye MTC, EN10204 3.1/3.2 certifica

    concentric_
