PRODUCT PARAMETERS
| Product Name | Pipe elbow |
| Size | 1/2"-36" seamless elbow(SMLS elbow), 26"-110" welded with seam. Biggest outside diameter can be 4000mm |
| Standard | ANSI B16.9, EN10253-2, DIN2605, GOST17375-2001, JIS B2313, MSS SP 75, etc. |
| Wall thickness | STD, XS, XXS, SCH20,SCH30,SCH40, SCH60, SCH80, SCH160, XXS and etc. |
| Degree | 30° 45° 60° 90° 180°,etc |
| Radius | LR/long radius/R=1.5D,SR/Short radius/R=1D |
| End | Bevel end/BE/buttweld |
| Surface | nature color, varnished, black painting, anti-rust oil etc. |
| Material | Carbon steel: A234WPB, A420 WPL6 St37,St45, E24, A42CP, 16Mn, Q345, P245GH,P235GH, P265GH, P280GH,
P295GH, P355GH etc. |
| Pipeline steel: ASTM 860 WPHY42, WPHY52, WPHY60, WPHY65,WPHY70, WPHY80 and etc. | |
| Cr-Mo alloy steel: A234 WP11,WP22,WP5,WP9,WP91, 10CrMo9-10, 16Mo3 , 12crmov, etc. | |
| Application | Petrochemical industry;aviation and aerospace industry;pharmaceutical industry,gas exhaust; power plant;ship building;
water treatment, etc. |
| Advantages | ready stock,faster delivery time;available in all sizes,customized;high quality |
PIPE FITTINGS
Butt welded pipe fittings includes steel pipe elbow, steel pipe tee, steel pipe reduer, steel pipe cap. All those butt welding pipe fittings, we can supply together, we have more 20 years production experiences.
If you are also interested other fittings, please click followed LINK to check details.
PIPE TEE PIPE REDUCER PIPE CAP PIPE BEND FORGED FITTINGS

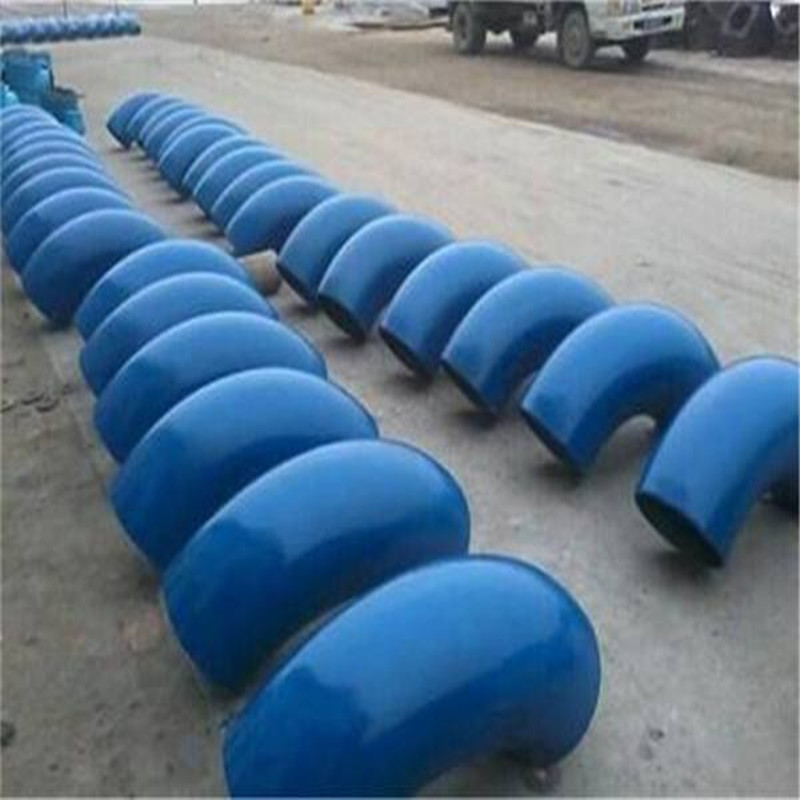

ALLOY STEEL PIPE ELBOW
High temperature Cr-Mo alloy steel can be A234WP11, A234WP22, A234WP5, A234WP9,A234WP91, 16Mo3, etc. Always application in power plant.
ELBOW SURFACE
Sand Blast
After hot forming, we arrange sand blast to make the surface to be clean and smooth.
After Sand blast, to avoid get rust, should do black painting or anti-rust oil, etc. That is depend on customer's request.
HEAT TREATMENT
1. Keep sample raw material to trace.
2. Arrange heat treatment as per standard strictly.
MARKING
Various marking work, can be curved, painting, lable. Or on your request. We accept to mark your LOGO.

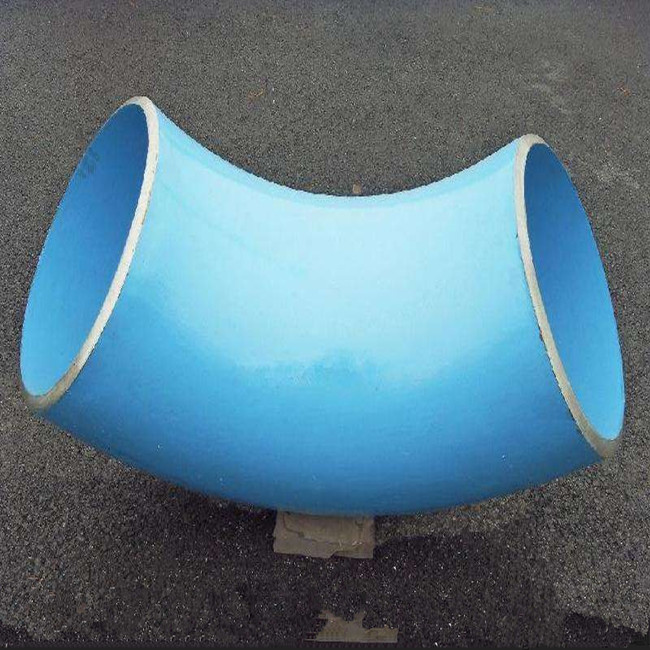

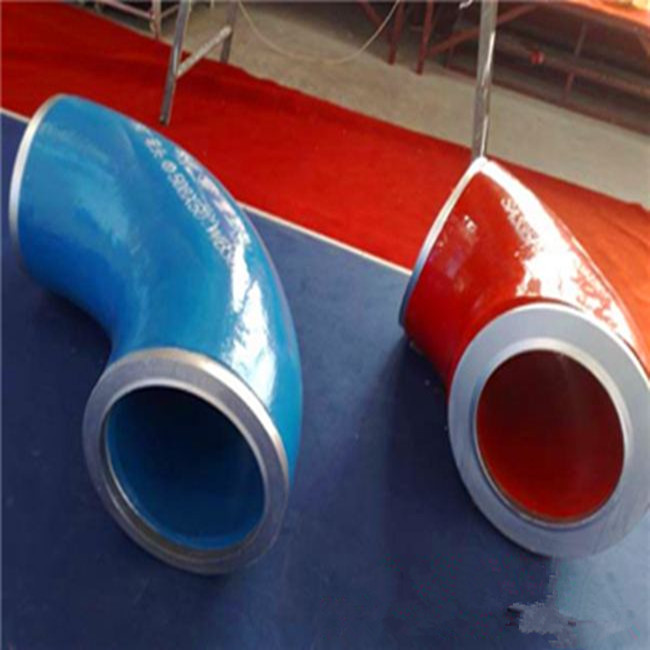

DETAILED PHOTOS
1. Bevel end as per ANSI B16.25.
2. Sand blast first, then Perfect painting work. Also can be varnished.
3. Without lamination and cracks.
4. Without any weld repairs.
INSPECTION
1. Dimension measurements, all within standard tolerance.
2. Thickness tolerance:+/-12.5% , or on your request
3. PMI
4. MT, UT,X-ray test
5. Accept Third party inspection
6. Supply MTC, EN10204 3.1/3.2 certificate
PACKAGING& SHIPPING
1. Packed by plywood case or plywood pallet as per ISPM15
2. we will put packing list on each package
3. we will put shipping markings on each package. Markings words are on your request.
4. All wood package materials are fumigation free
Heat treatment
1. Keep sample raw material to trace.
2. Arrange heat treatment as per standard strictly.
Marking
Various marking work, can be curved, painting, lable. Or on your request. We accept to mark your LOGO.
Detailed photos
1. Bevel end as per ANSI B16.25.
2. Sand blast first, then Perfect painting work. Also can be varnished.
3. Without lamination and cracks.
4. Without any weld repairs.
Inspection
1. Dimension measurements, all within standard tolerance.
2. Thickness tolerance:+/-12.5% , or on your request
3. PMI
4. MT, UT,X-ray test
5. Accept Third party inspection
6. Supply MTC, EN10204 3.1/3.2 certificate
Packaging & Shipping
1. Packed by plywood case or plywood pallet as per ISPM15
2. we will put packing list on each package
3. we will put shipping markings on each package. Markings words are on your request.
4. All wood package materials are fumigation free
-
